Auto Ref-Keratometer Digital Refractor Auto Chart Projector LCD Chart Auto Lensmeter

POTEC satisfies optics specialists by manufacturing products with convenient, enhanced functions

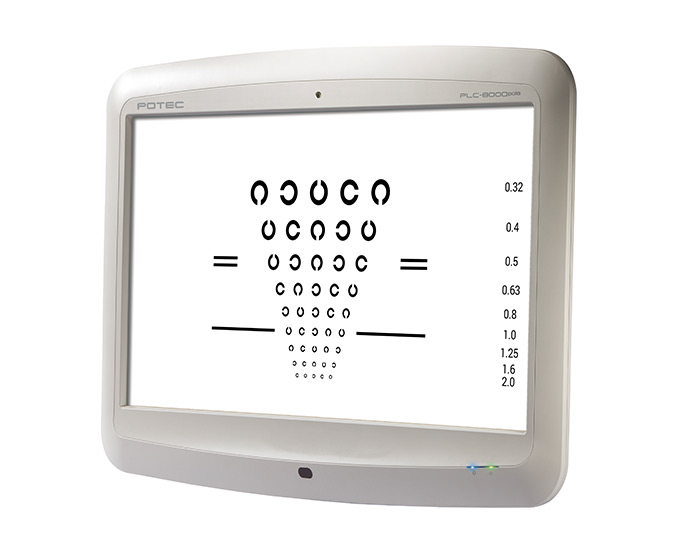

LCD Chart

PLC-8000(pola)

LCD Chart

- High Definition LCD Smart Chart System
- Wide range of test
- FULL-HD Video play

Product Description
Specifications

	Diversified Astigmatism test chart Expanded diagnose environments with various charts (7 types)

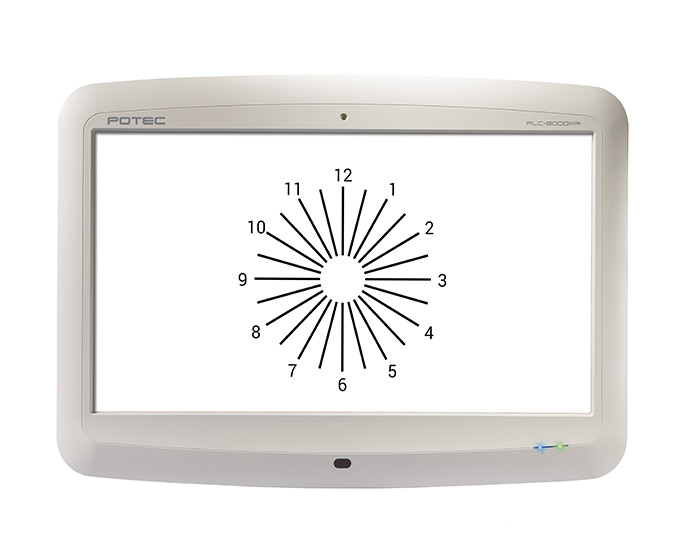

	Astigmatism Fan & Block Charts The addition of fan and block charts to general astigmatism test functions allows more accurate astigmatism test.
	Reverse mode for LASIK and Cataract surgical patients
	Diversified ETDRS test chart Newly added letter & number based Charts provide wide range of diagnose environments.
	Amsler Vision test chart for Macular Degeneration
	Enhanced Maddox rod test Embedded Fixation Target Lamp for Maddox test provides 10 level of brightness
	FULL-HD Video play Playing cartoon film at High resolution helps you draw attention from kids or infants that are easily distracted for intensive diagnose. Play full HD video from USB flash drive and control by remote controller.
	Various color blindness test chart
	Smart Chart system with Full HD LCD - 23(Regular), 24 Inch (Polaroid) High resolution chart - Full-HD TFT-LCD(1980X1080) panel / 16.7M Color 250cd/㎡
	Wide range of test High Resolution LCD enables wide range of test 0.05 ~ 2.0
	Adjustable test distance Test distance is adjustable 1.0m ~ 6.0m by 0.1m
	SMART intercommunication Support both interface RS-232(Wired), Bluetooth(Wireless) for the compatibility with PDR-7000
	Basic test / User modified program Provide basic Program A and Program B which provides programmable up to 40 steps.

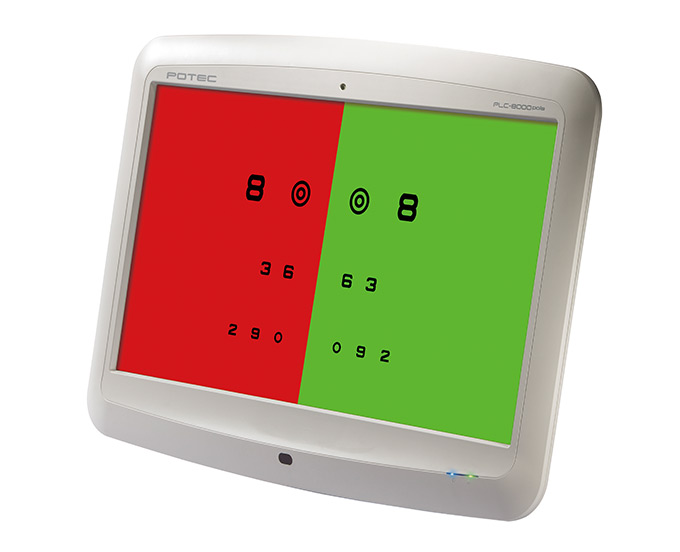

	Enhanced R/G filter adjustment Broaden range of R/G adjustment up to 96 steps enables optometrist to optimize the screen to fit in well with environment for reliable binocular vision test.
	Promotional Videos Play During the power saving mode, the LCD back light is turned off to minimize power consumption and the promotional videos for clinics and optical shops are playable on a LCD chart.
	User friendly functions Contrast, Mirror, Mask.
	Customizable boot-up screen & slides (up to 38 slides)

	Diversified Astigmatism test chart Expanded diagnose environments with various charts (7 types)
	Astigmatism Fan & Block Charts The addition of fan and block charts to general astigmatism test functions allows more accurate astigmatism test.
	Reverse mode for LASIK and Cataract surgical patients
	Diversified ETDRS test chart Newly added letter & number based Charts provide wide range of diagnose environments.
	Amsler Vision test chart for Macular Degeneration
	Enhanced Maddox rod test Embedded Fixation Target Lamp for Maddox test provides 10 level of brightness
	FULL-HD Video play Playing cartoon film at High resolution helps you draw attention from kids or infants that are easily distracted for intensive diagnose. Play full HD video from USB flash drive and control by remote controller.
	Various color blindness test chart
	Smart Chart system with Full HD LCD - 23(Regular), 24 Inch (Polaroid) High resolution chart - Full-HD TFT-LCD(1980X1080) panel / 16.7M Color 250cd/㎡
	Wide range of test High Resolution LCD enables wide range of test 0.05 ~ 2.0
	Adjustable test distance Test distance is adjustable 1.0m ~ 6.0m by 0.1m
	SMART intercommunication Support both interface RS-232(Wired), Bluetooth(Wireless) for the compatibility with PDR-7000
	Basic test / User modified program Provide basic Program A and Program B which provides programmable up to 40 steps.
	Enhanced R/G filter adjustment Broaden range of R/G adjustment up to 96 steps enables optometrist to optimize the screen to fit in well with environment for reliable binocular vision test.
	Promotional Videos Play During the power saving mode, the LCD back light is turned off to minimize power consumption and the promotional videos for clinics and optical shops are playable on a LCD chart.
	User friendly functions Contrast, Mirror, Mask.
	Customizable boot-up screen & slides (up to 38 slides)

SPECIFICATION
Test Distance	1.0~8.0m (Unit : 0.1m)
Chart	Landolt Ring, Alphabet, Numerals, Snellen, Pictures, Mask(Vertical, Horizontal, Single letter), RG chart/ Polaroid chart(PLC-8000pola), Color blind, Amsler Chart
Programable chart	Up to 40 charts
Interface	USB(USB2.0), RS-232
Communication	Wired : RS-232 Wireless : Bluetooth
LCD	23 lnch Full-HD (Resolution : 19201080), PLC-8000 24 Inch Full-HD (Resolution : 19201080), PLC-8000pola
OS	Android 4.4.2
Storage	Micro SD Card(8G)
Speaker unit	1.5W
Video format	AVI, MPEG, MP4, MKV
Rated Voltage	AC100-240V, 50/60Hz
Power consumotion	PLC-8000 : 45-55VA PLC-8000pola : 35-45VA
Volume(Dimension)	Body : 583(W)X55(D)X423(H) mm Remote controller : 64(W)X196(D)X20(H) mm
Weight	Body : Approximately 6kg, Wall Mount Bracket : 370g Remote controller : 160g (Battery included)
Environment conditions	(In use) Temperature : +10 ~ +40 Humidity : 30%RH ~ 85%RH Pressure : 700hPA ~ 1060hPA (In transport/storage) Temperature : -10 ~ +55 Humidity : 10%RH ~ 90%RH Pressure : 600hPA ~ 1060hPA
