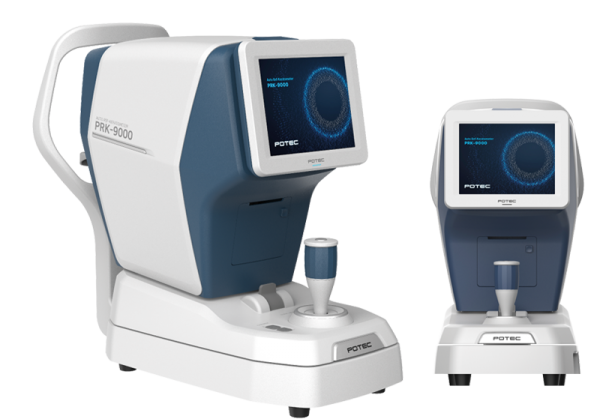

PRK-9000

PRK-9000 is designed to deliver increased measurement accuracy and a range of multifunctional capabilities, including Dry Eye Diagnosis.

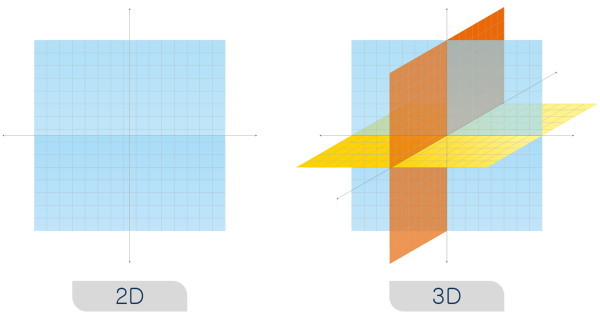

3D/2D Semi Auto Tracking

Automatic eye recognition and three-dimensional drive mechanism automatically tracks the measurement point of the pupil for convenient and optimized focusing conditions.

Redefined Accuracy

The high-performance latest CPU enables rapid image processing of eye information captured by the high-resolution camera.

Dry Eye Pre-diagnosis

Provides an observation mode for meibomian degeneration that can be used as basic data for diagnosing tear film condition and dry eye.

Other features

• Color view mode

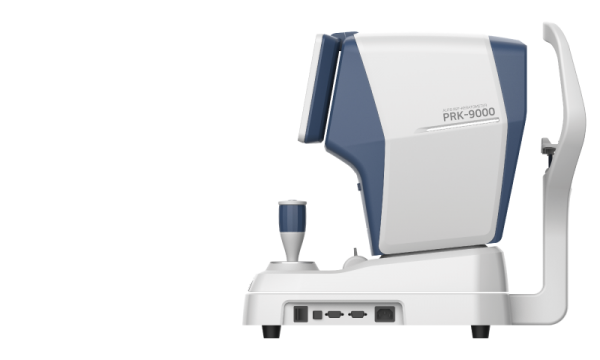

• Enhanced connectivity (LAN, HDMI)
• Superior low vibration and noise performance
• WiFi communication (optional)

Specifications

• Measurement Modes

  ① REF ② KER ③ K/R ④ CLBC ⑤ K(P)

• Refractometry

• Vertex Distance (VD)

  0.0, 12.0, 13.5, 15.0mm

• Sphere Power (SPH)

  -30.00 ~ +25.00 D (VD: 12mm)
  (Increments 0.12, 0.25 D)

• Cylinder Power (CYL)

  0.00 ~ ±10.00 D
  (Increments 0.12, 0.25 D)

• Axis (AX)

  1~180˚ (Increments: 1˚)

• Cylinder Form

  -, +, MIX

• Pupil Distance (PD)

  10 ~ 88mm

• Minimum Pupil Diameter

  Ø 2.0 mm

• Keratometry

• Radius of Curvature

  5.0 ~ 13.0mm (Increments: 0.01mm)

• Corneal Power

  25.96 ~ 67.50 D (n=1.3375)
  (Increments 0.05, 0.12, 0.25 D)

• Corneal Astigmatism

  0.00 ~ -15.00 D
  (Increments 0.05, 0.12, 0.25 D)

• Axis

  1 ~ 180˚ (Increments: 1˚)

• Others

• Corneal Diameter

  2.0 ~ 14.0mm (Increments: 0.1mm)

• Internal Printer

  Thermal line printer with Auto-Cutter function

• Monitor

  8-inch TFT LCD monitor
  (800x600 pixels, tiltable/swivel)

• 3D Auto Tracking Range

  X, Y, Z: 10mm (±2mm)

• Chinrest

  Motorized

• Communication

  RS-232, LAN, WiFi (optional)

• Update

  USB (A type) memory card

• Dimensions & Weight

  260(W) × 520(L) × 480(H)mm / 20kg

* Design and specifications are subject to change without prior notice.

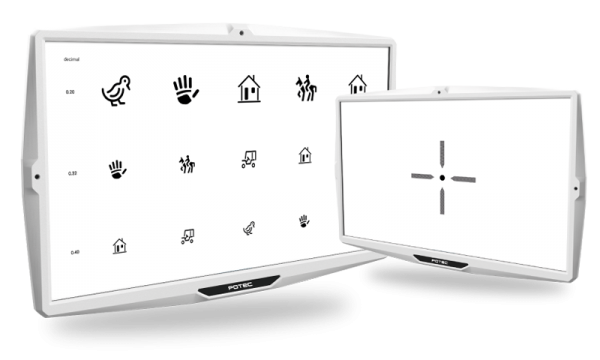

PLC-9000
PLC-9000pola

PLC-9000 provides an improved user-friendly environment for visual acuity testing.

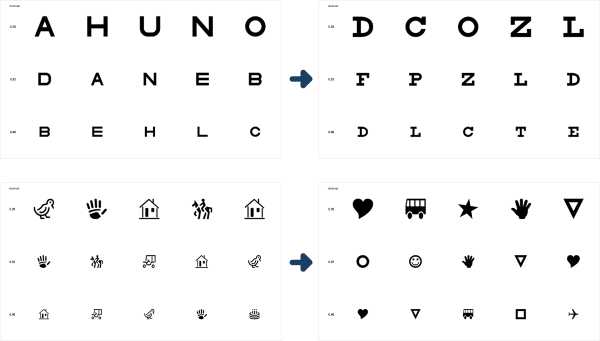

Easy Customized Fonts Update

Offers a wide range of customizable fonts to meet the specific requirements of clients. Additionally, it provides the flexibility to easily incorporate additional fonts upon request.

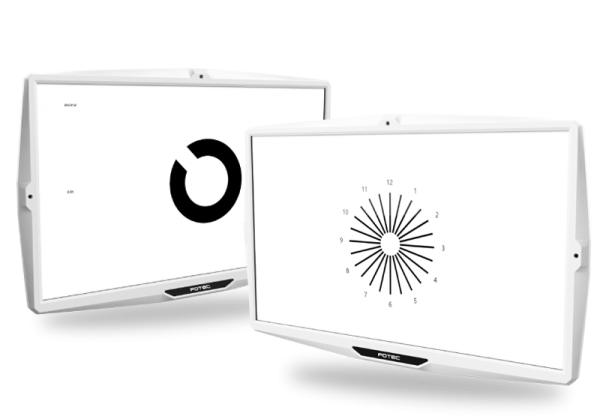

Wide Selection of Charts

Provides a variety of charts that can be customized according to the clients' specific requirements.

Other features

• USB software update
• WiFi communication (optional)
• Full HD LCD

Specifications

• Charts

  Landolt, English, Numeral, Snellen, Children, Special Chart, Color Blindness Mask (Horizontal, Vertical, Single)

• Program

  Maximum of 40 charts in each of the 2 programs.

• External input/output port

  USB(USB 3.0), RS-232

• Communication

  RS-232, WiFi (optional)

• LCD

  23.8 inch

• Dimension & Weight

  584.5(W) × 363(H) × 53.5Dmm / 4.8kg

* Design and specifications are subject to change without prior notice.
