Auto Chart Projector

PACP-8000

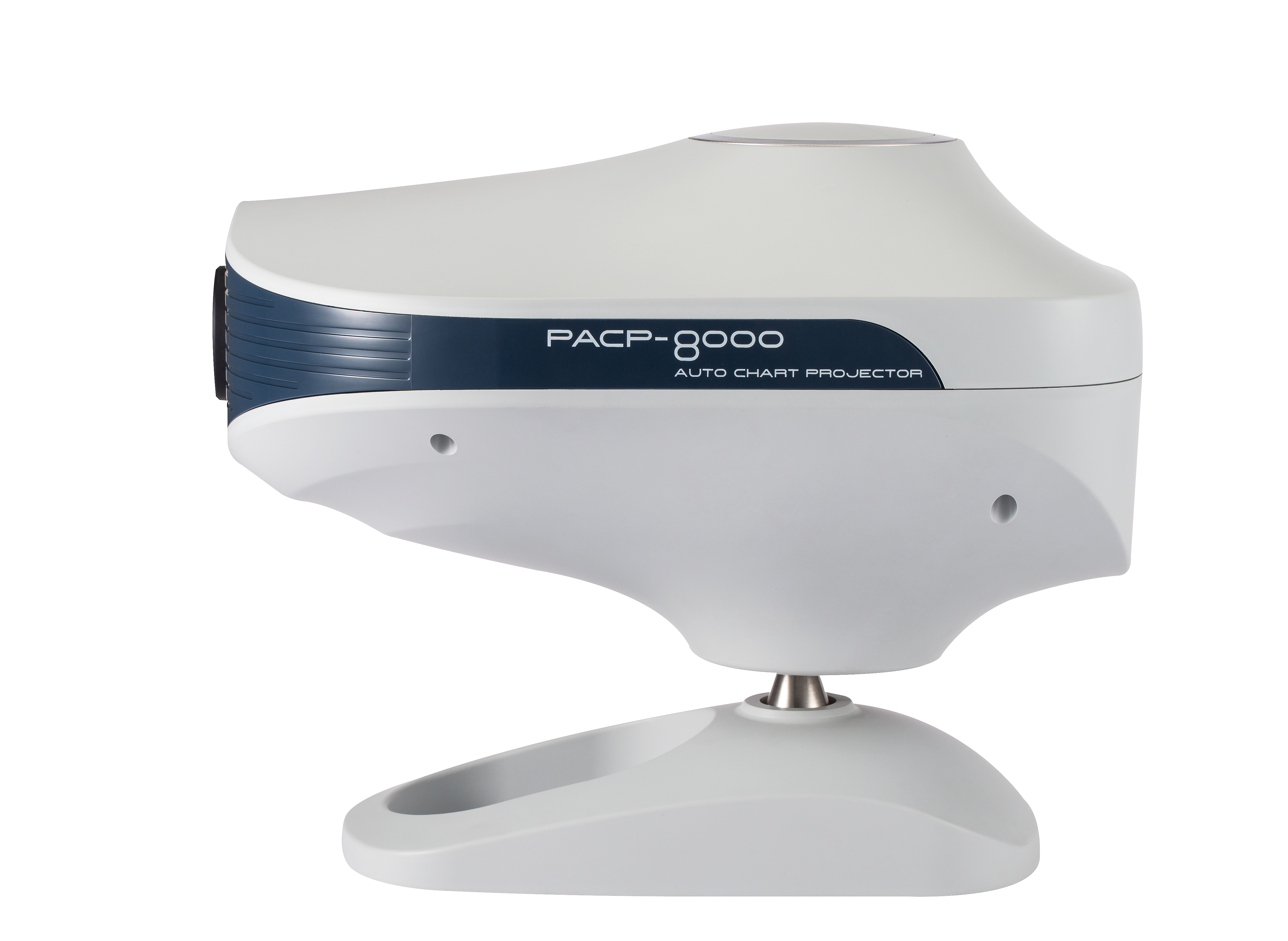

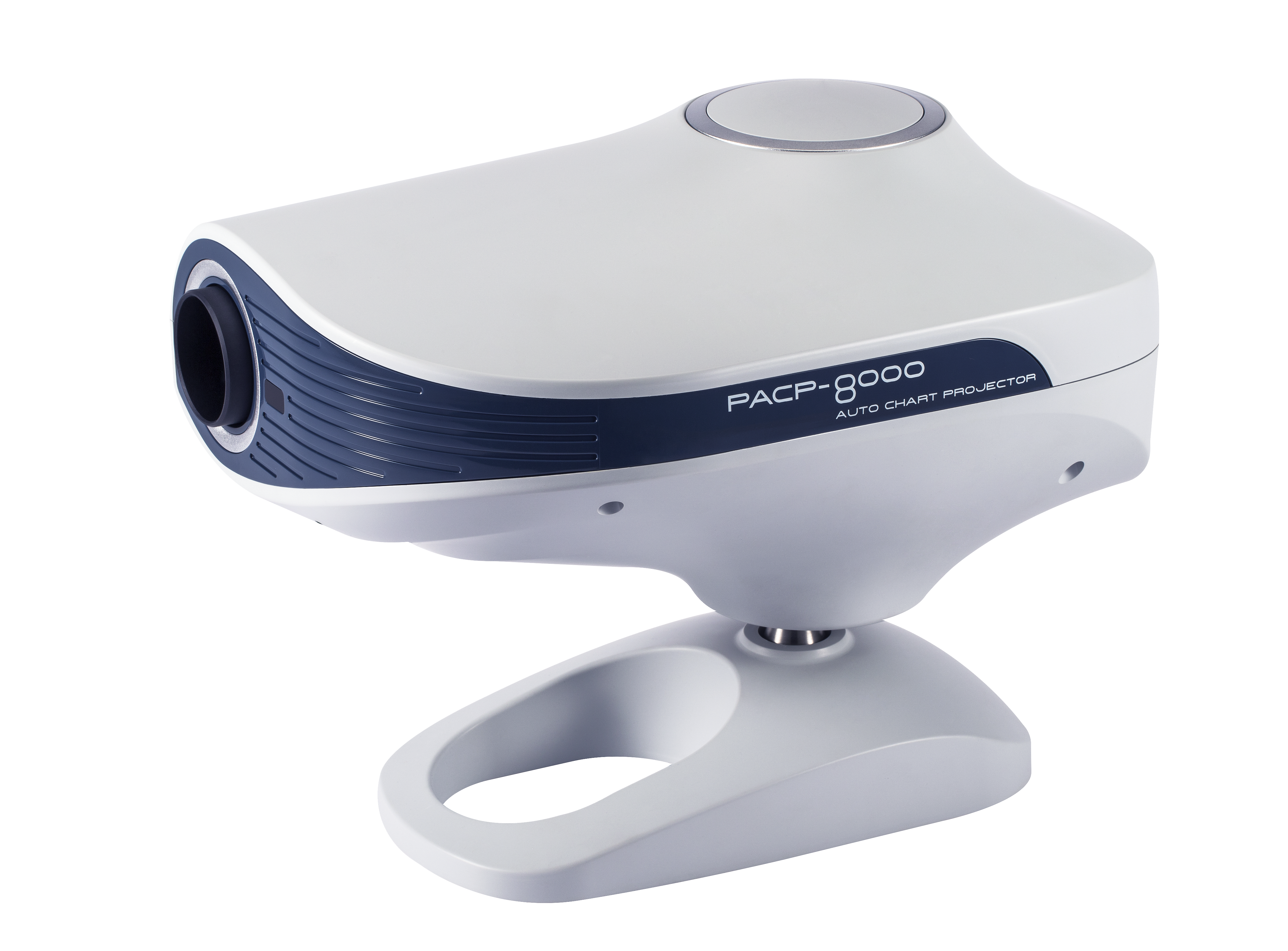

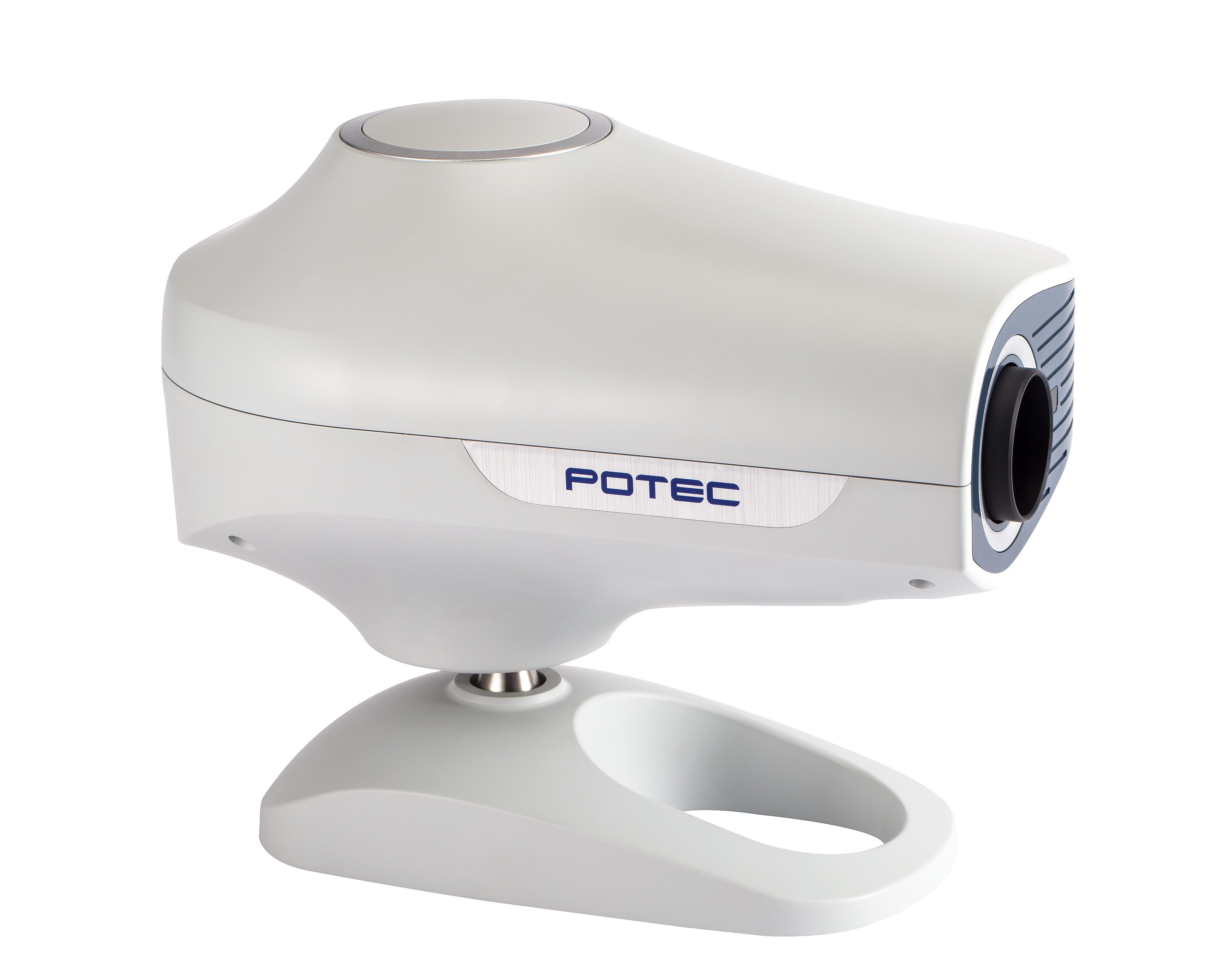

Auto Chart Projector
PACP-8000 provides optometry with
the greater convenience using the refined design,
a compact size, and diversified charts.
  • Product Description
  • Specifications
Eyesight measurement using diversified charts
Diversified charts (4 types of A/C/D/R) per country are retained including binocular balance, aniseikonia, stereopsis, binocular vision test chart
Cost saving through adoption of LED light source
Maintenance & repair costs can be saved through adoption of LED light source having a semi-permanent service life
Bright & clear chart display
Brighter & clear chart display is provided by adoption of white LED
Refined design
Optometry room is made to stand out by the refined design embodying an eyeball.
Compact size
A roomy optometry space is provided using a more compact size
- Size: 25% Reduction comparing with PACP-7000
- Weight: 25% lighter than PACP-7000

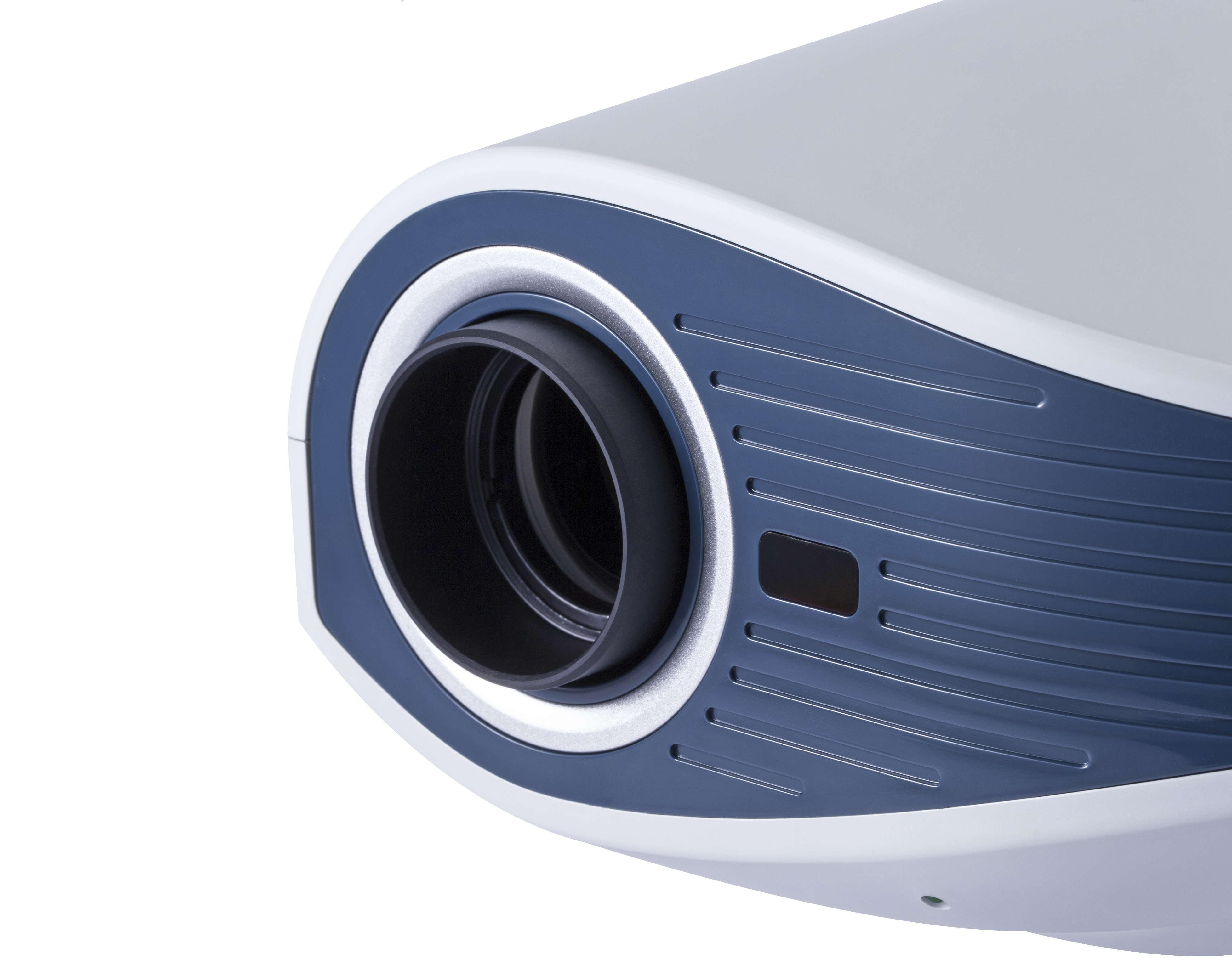

Convenient focus adjustment
Convenient focus adjustment is enabled by a rotary aperture.
Eyesight measurement using diversified charts
Diversified charts (4 types of A/C/D/R) per country are retained including binocular balance, aniseikonia, stereopsis, binocular vision test chart
Cost saving through adoption of LED light source
Maintenance & repair costs can be saved through adoption of LED light source having a semi-permanent service life
Bright & clear chart display
Brighter & clear chart display is provided by adoption of white LED
Refined design
Optometry room is made to stand out by the refined design embodying an eyeball.
Compact size
A roomy optometry space is provided using a more compact size
- Size: 25% Reduction comparing with PACP-7000
- Weight: 25% lighter than PACP-7000
Convenient focus adjustment
Convenient focus adjustment is enabled by a rotary aperture.
Charts
Charts42 EA
Distance of Projector2.5~8m (8m distance projection screen is optional)
Chart magnification30× (when projected at 5m distance)
LampLED lamp
Chart rotation speedaverage 0.3 sec
Power save11 minutes (after last signal)
Tilt angle± 20 degrees
Resolution50 lines / mm
Program2 programs with a maximum of 40 charts each
Power Supply100 - 240V~, 50/60Hz
Power consumption25~35VA
Dimensions

Body (Exclude Stand) : 200(W)×290(D)×172(H) mm

Body (Include Stand) : 200(W)×290(D)×235(H) mm

Remote Controller : 64(W)×196(D)×20(H) mm

Weights

Body : 3.58 kg(Stand included)

Remote Controller : 160 g (Battery included)

Standard AccessoriesScreen, Remote Controller, Table Stand, Dust Cover, Power Cable,T wrench, Fuse, Battery
Optional AccessoriesRed/Green glasses, Polarization glasses
